How to Connect a Nintendo Switch to Your TV

Connecting a Nintendo Switch to a TV is a simple process, but it's important to make sure all cables are connected correctly before placing the console in the dock. Once set up, TV mode lets you enjoy games on a larger screen and take full advantage of local multiplayer experiences. However, it's worth noting that the Nintendo Switch Lite does not support TV output, so the instructions below apply only to the Nintendo Switch and Nintendo Switch OLED models.

In this guide, we'll walk through the steps required to connect your console to a TV, explain the equipment you'll need, and highlight a few common setup issues to avoid. If you're using a newer system, keep in mind that the Nintendo Switch 2 uses different dock hardware and USB-C specifications, so the connection process may vary from the original Switch models.

What You Need Before You Start

To connect your Switch console to a TV and play with your family, you’ll need these five items:

• Switch console

• Matching dock

• Power adapter

• HDMI cable

• An available HDMI port on your TV

Please note that your Switch console must be a model that supports this feature. The Switch Lite only supports handheld mode for gaming.

Next, you’ll need to check the space around the TV. The stand must have sufficient vertical clearance so you can place the set vertically from above. Additionally, the shelf must be deep enough to accommodate the cables connected to the back of the stand.

If you use a Switch case, take it off before this first setup test. This is because some protective cases may prevent the Switch console from docking properly. If you’ve ever forced a console with a protective case onto the dock and found that the screen didn’t display anything, this is usually caused by the protective case.

Step by Step: Connect the Dock and Console

When you connect your Switch to a TV for the first time, please follow these 7 steps:

1. Open the cover on the back of the dock.

2. Plug the Nintendo HAC-002 AC adapter (or a USB-C adapter with equivalent output) into the port labeled AC ADAPTER.

3. Connect the adapter to a wall outlet.

4. Plug one HDMI cable end into the port labeled HDMI OUT.

5. Run the other HDMI cable end to an available HDMI port on your TV.

6. Write down which HDMI port you used, such as HDMI 1 or HDMI 2.

7. Close the dock cover without pulling either plug back out.

Most people use the Joy-Con controllers wirelessly. First, slide them off the console to remove them. Before using them separately, you must pair them with the console.

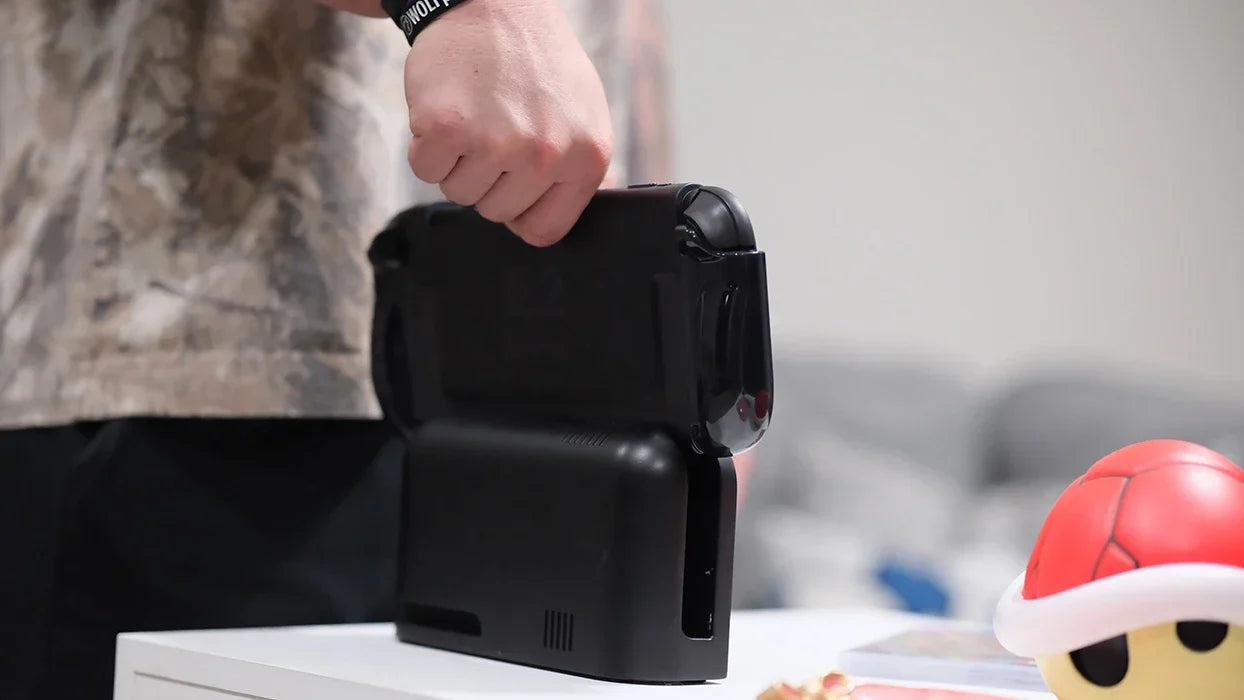

Hold your Switch with the screen facing the front of the dock, then lower it straight down. Turn the TV on and select the HDMI input that matches the port number you wrote down. Your Switch screen should go dark, and the HOME Menu should appear on the TV. After that, just select the game you want.

Learn More: How to Connect Switch 2 to TV?

Confirm TV Mode Is Actually Working

Once you’ve connected your Switch console to the TV, you’ll need to verify that the TV is in the correct mode. Just because the charging light is on doesn’t mean it’s working properly. You should check the following three items:

1. The built-in console screen turns off after you dock the Switch.

2. A Joy-Con or Pro Controller moves the cursor through the HOME Menu on the TV.

3. Sound reaches your TV or any connected audio device.

If all three checks pass, the setup was successful. If any of them fail, make a note of which one. You can follow the troubleshooting steps below to resolve the issue.

How to Fix the Common No Signal Cases

We have received numerous reports from players regarding “no signal” issues, which are typically caused by one of the following four factors:

• Power supply issues with the dock

• Connection (plug-in) issues between the console and the dock

• Issues with the HDMI signal transmission path

• Issues with the TV's input source selection

Change one variable per test so the outcome of that single change points to the failed part. The 4 patterns below each have a distinct fixed path. Match your exact situation to the section that describes it and work only through those checks.

Your Switch charges in the dock, but the TV shows no picture

Confirm the TV input matches the physical HDMI port you used. Push both HDMI cable ends back in firmly. Connect the dock directly to the TV, bypassing any soundbar, AV receiver, home theater box, or HDMI switcher. A direct HDMI path is the standard first move, and we see the same result in our own dock testing.

Take the protective case off and dock the bare console again. Try another TV HDMI port. Try another HDMI cable. Try another TV if you can. If you have a second working dock, swap it in as the last test. If the second dock produces a picture, the original dock is the failed part.

Your Switch does not charge when docked

Please remove the console from the dock and check whether it powers on normally in handheld mode. If it fails to power on in handheld mode as well, this indicates a power issue. You must resolve this issue first before troubleshooting HDMI-related problems.

Next, inspect the power adapter cable, HDMI cable, and docking station ports for any damage, loose connections, or bent pins. If there is obvious damage, please replace the affected components. In addition, issues with the wall outlet, the docking port, or how the main unit is positioned in the dock may also prevent charging.

Your TV picture flickers or looks distorted

This issue is most often caused by a problem with the HDMI signal transmission path. Re-align the HDMI cable first. Then test a different TV HDMI port. Then swap in a different HDMI cable. Then bypass any soundbar, receiver, or video switcher.

If you have a second TV, compare the picture there. The stability of the picture depends on the TV, the HDMI port, the condition of the cable, and any devices connected between the stand and the TV. By comparing the data, we can generally identify the cause of the problem.

Case Compatibility Issues

When troubleshooting a “no signal” issue, be sure to remove the protective case first. Start by confirming that the device displays the image normally on the TV without the case. Then, reattach the protective case to verify whether the case is causing the problem.

Not all Switch cases are compatible with the dock. You need to make sure the case is a perfect fit for your Switch model and leaves enough space. This will ensure the console slides smoothly into the dock and connects to the USB-C port. If you’ve ever tried to force a Switch with a case on into the dock and heard a clicking or grinding sound, that means you’ll need to remove the case.

Learn More: What Is the Best Dock-Compatible Case for the Switch 2?

Conclusion

One common reason the console may not make full contact with the USB-C port is obstruction caused by the edges of a protective case. Therefore, we strongly recommend removing the protective case first to test the console.

If you’re looking for a Switch case that offers protection without interfering with the dock connection, check out Mumba’s Switch cases. We offer not only cases compatible with the dock but also Switch carrying cases and other accessories.

Nintendo Switch TV Connection FAQ

Why does my Nintendo Switch charge in the dock but show no picture on the TV?

Charging only confirms the power path. Check the following items one by one to identify the specific issue:

• Check the TV’s signal source settings.

• Make sure the HDMI cable is securely connected.

• Check to see if the protective case is blocking the USB-C port.

• Make sure the stand is connected directly to the TV, rather than through a soundbar or signal switcher.

Does Nintendo Switch OLED connect to a TV the same way?

Yes. The Switch OLED uses the same core sequence: power the dock, plug in HDMI OUT, insert the console, and select the matching TV input. The OLED dock adds a wired LAN port, but the HDMI setup is identical.

Why will my Nintendo Switch not fit into the dock with a case on?

Not all Switch cases are compatible with the dock. Cases that are too thick may block the dock’s port or prevent the console from inserting fully to establish a complete USB-C connection. You’ll need to choose a Switch case that’s compatible with the dock.

Do I need the Nintendo HAC-002 adapter, or will a third-party USB-C adapter work?

The HAC-002 is Nintendo's official Switch adapter and the safest choice. Although third-party USB-C adapters with comparable output specifications may work, actual performance depends on the adapter’s power delivery specifications. Therefore, it is recommended to purchase brand-name products that are explicitly labeled as compatible with the Switch.
